Descrição
Electrical Data:
| Type: | Base Loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: | ≥ 1.8MHz @ SWR ≤ 2 |
| Max Power: | 2000 Watts Duty Cicle 5′ on-5′ off |
| Grounding protection: | DC-Ground |
| Cable lenght / type: |
|
| Connector: |
|
Mechanical Data:
| Materials: | Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, Zamak |
| Height (approx): | 1920 mm / 6.3 ft |
| Weight (approx): | 730 gr / 1.61 lb |

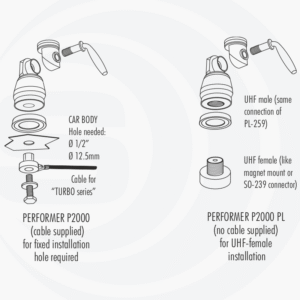

| Mounting type: |
|
