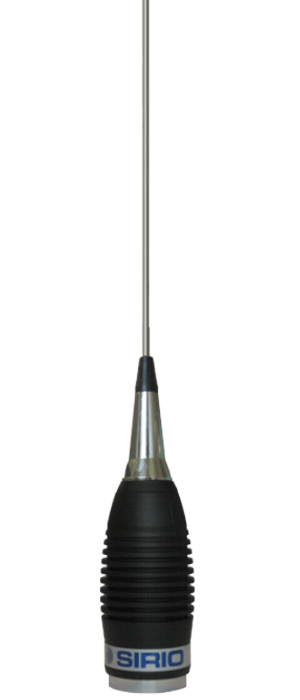

Name: MEGAWATT 4000 SILVER - sirio
SKU: 248858
Price: 522.00 BRL
Availability: OutOfStock

Descrição

Electrical Data:

Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 30 MHz Tunable
Systems:	CB 27MHz, 10m-HAM
Bandwidth:	MEGAWATT 3000 N: ≥ 1.89MHz @ SWR ≤ 2 MEGAWATT 3000 PL: ≥ 1.89MHz @ SWR ≤ 2 MEGAWATT 4000 N: ≥ 2.58MHz @ SWR ≤ 2 MEGAWATT 4000 PL: ≥ 2.58MHz @ SWR ≤ 2
Max Power:	MEGAWATT 3000 N: 400 Watts (CW) continuous 1200 Watts (CW) short time MEGAWATT 3000 PL: 400 Watts (CW) continuous 1200 Watts (CW) short time MEGAWATT 4000 N: 600 Watts (CW) continuous 1800 Watts (CW) short time MEGAWATT 4000 PL: 600 Watts (CW) continuous 1800 Watts (CW) short time
Grounding protection:	DC-Ground

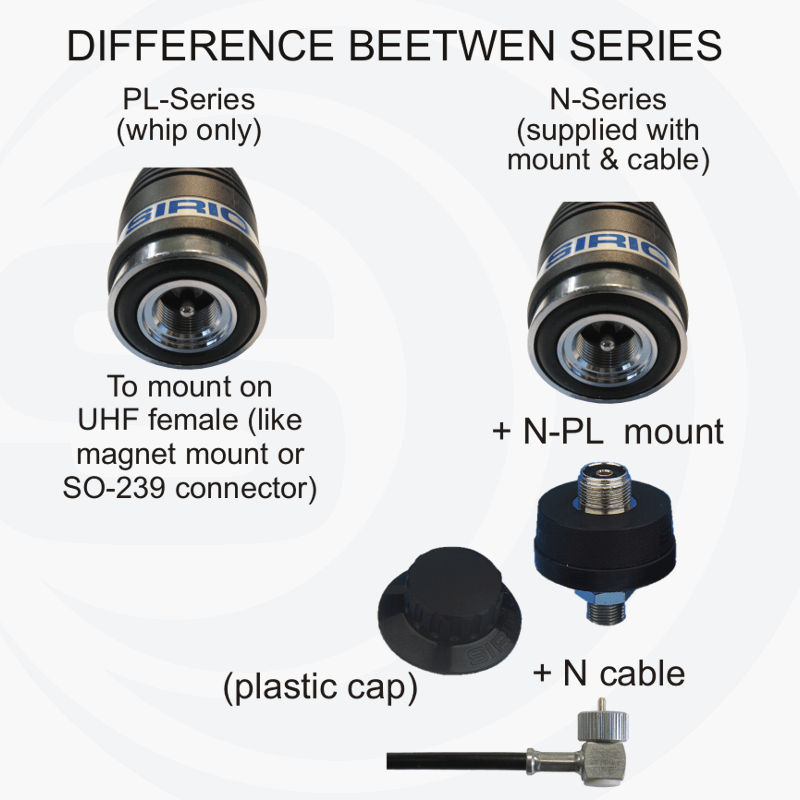

Cable lenght / type:	MEGAWATT 3000 N: 4 m (13.12 ft) / RG58 MEGAWATT 3000 PL: Not supplied MEGAWATT 4000 N: 4 m (13.12 ft) / RG58 MEGAWATT 4000 PL: Not supplied
Connector:	MEGAWATT 3000 N: Not supplied MEGAWATT 3000 PL: UHF-male (PL-259) MEGAWATT 4000 N: Not supplied MEGAWATT 4000 PL: UHF-male (PL-259)

Mechanical Data:

Materials:	Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	MEGAWATT 3000 N: 1740 mm / 5.71 ft MEGAWATT 3000 PL: 1740 mm / 5.71 ft MEGAWATT 4000 N: 2030 mm / 6.66 ft MEGAWATT 4000 PL: 2030 mm / 6.66 ft
Weight (approx):	480 gr / 1.06 lb
Mounting type:	MEGAWATT 3000 N: Thru-Hole MEGAWATT 3000 PL: On-Connector MEGAWATT 4000 N: Thru-Hole MEGAWATT 4000 PL: On-Connector
