Descrição
Electrical Data:

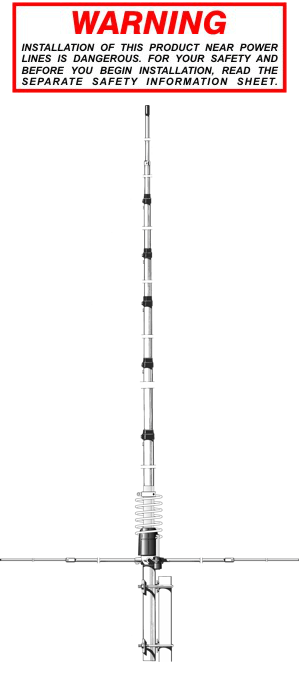

| Type: | 5/8 λ ground plane |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 30 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 1.2 dBd, 3.35 dBi |
| Bandwidth: | ≥ 1.3MHz @ SWR ≤ 2 |
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Brass, Galvanized steel, Thermoplastic UV stabilized |
| Height (approx): | 7230 mm / 23.72 ft |
| Weight (approx): | 2900 gr / 6.39 lb |
| Mounting type: | On-Mast |
